Consumer App: Device Pairing Process

This guide walks you through pairing your Aura Air device with the mobile app, from initial configuration to successful connection.

Prerequisites

• Aura Air app installed and logged in
• Aura Air device unpacked and plugged into power
• WiFi network meeting Aura Air requirements

Step 1: Start Device Setup

Initiating Pairing

From your devices dashboard, tap the "+" icon in the upper right corner to begin adding a new device.

Step 2: Device Configuration

Basic Device Settings

On the "New Device" screen, configure:

1. Device Name: Enter a descriptive name for easy identification
2. Room Location: Select from the dropdown menu (Living Room, Bedroom, Kitchen, etc.)
3. Operating Mode: Choose initial mode (Auto Mode recommended for beginners)

Tap "Next" when all fields are completed.

Step 3: License Key Validation

After purchasing a new Aura Air device or replacement filter, you'll receive a License Key. Enter this key during setup to activate your device. License Keys remain valid for one year from activation.

Step 4: Aura Air Device Preparation

Activating Pairing Mode

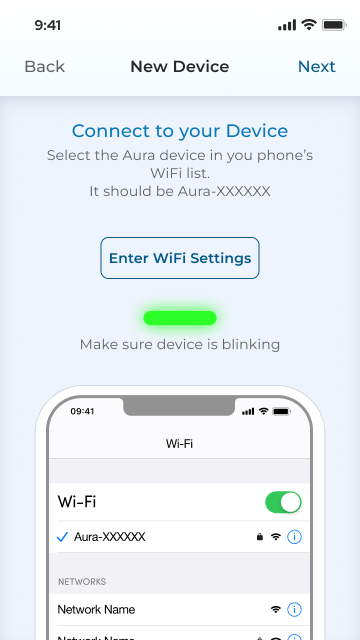

The "Connect to your Device" screen provides these instructions:

1. Locate the Button: Find the single button on your Aura Air device
2. Press and Hold: Hold the button for 4 seconds
3. LED Indicator: Wait for the front LED to turn green (indicates Listening Mode)
4. Visual Confirmation: Ensure the device shows a green blinking light

Step 5: WiFi Connection Process

Phase 1: Connect to Device

1. Tap "Enter WiFi Settings" button
2. Your phone's WiFi settings will open automatically (as shown in the screen mockup)
3. Look for "Aura-XXXXXX" in the available networks list
4. Select the Aura network (it will have a unique identifier)
5. Return to the Aura Air app

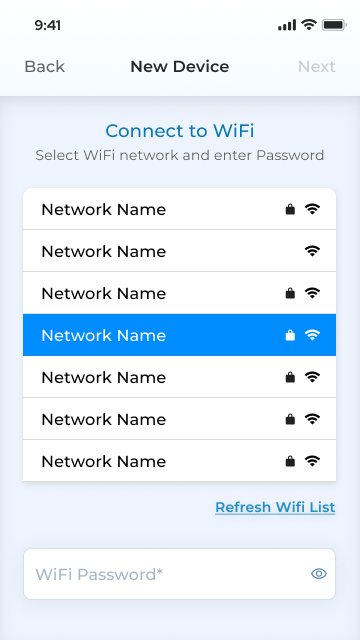

Phase 2: Select Home Network On the "Connect to WiFi" screen:

1. Network Selection: Choose your home WiFi network from the list
2. Password Entry: Enter your WiFi password in the "WiFi Password" field
3. Network Types: Both secured (lock icon) and open networks are supported
4. Refresh Option: Use "Refresh WiFi List" if your network doesn't appear
5. Tap "Next" to proceed

Step 6: Device Setup Completion

Setup Process

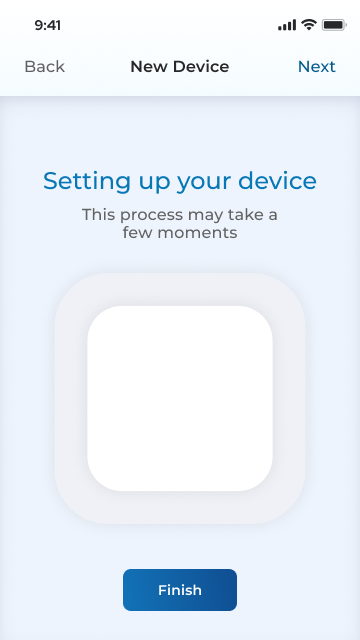

The "Setting up your device" screen appears with the message: "This process may take a few moments"

• Wait patiently during this automated process
• Do not close the app or interrupt the connection
• Normal duration is typically 1-3 minutes

Successful Completion When setup completes successfully:

• The "Finish" button will appear
• Tap "Finish" to complete the onboarding
• Your device will now appear in your device list
• You can begin monitoring air quality immediately

Basic Troubleshooting

If the pairing process is unsuccessful, check WiFi network requirements in the "Aura Air Device WiFi Requirements & Troubleshooting" article.

For persistent pairing failures, see the "Consumer App: Advanced Troubleshooting" guide.
